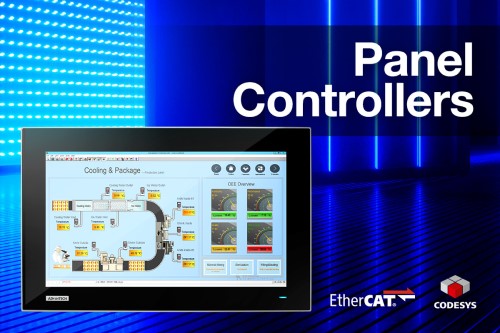

AMAX-PT800 - Panel-Controller mit CODESYS - NEU









AMAX-PT800 - Panel-Controller mit CODESYS - NEU








Intel Core-i Panel Controller mit EtherCAT


  • Modular Computing Box powered by 13th Gen. Intel® Core™ i5-1335UE deca-core/ i7-1365URE deca-core processorModular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1", 15", 15.6", 21.5" with high brightness panel option)
  • Single DDR5 Memory slot supports up to 32GB?Support expansion via three M.2 slots (NVMe, Wifi, 5G)
  • LAN, POE, isolated serial port and isolated digital I/O via iDoor technology


Artikelnummer: 00036678




















Technische Daten für AMAX-PT800


  • Modular Computing Box powered by 13th Gen. Intel® Core™ i5-1335UE deca-core/ i7-1365URE deca-core processorModular Front Panel modules ranging from 12.1" to 23.8" with P-CAP multi-touch in selection (12.1", 15", 15.6", 21.5" with high brightness panel option)
  • Single DDR5 Memory slot supports up to 32GB?Support expansion via three M.2 slots (NVMe, Wifi, 5G)
  • LAN, POE, isolated serial port and isolated digital I/O via iDoor technology
  • Support Type C connector with USB 3.2, DP 1.4a, 15W power delivery
  • Support 3 displays with clone/extend mode (FPM-D/DP/Type C)
  • Performance, fanless embedded system with chassis grounding protection:RAID 0 and 1 Support
  • ODESYS Pre-Licensed
